Alupanel A-Lite

The flat, smooth, digital surface with vastly improved ink adhesion helps to display printed colors with increased brightness and intensity.

Why use Alupanel A-Lite?

  • Manufactured in the UK
  • Specially developed Signal White 9003 finish
  • Matte/Matte
  • Rigid, lightweight panel
  • Flat, smooth, uniform surface
  • Clean, easy-peel film
  • Premium quality product
  • 2 year warranty
AdhesiveCo-extruded to give superior adhesionCoreHigh quality PE coreAluminum skin0.18mm high grade aluminum providingsuperb flatness and rigidityPaint FinishBoth sides of our A-Lite panels have abrighter, more consistent bespokeSignal-white finish. It has beendeveloped specifically for digital &screen printing to help display colorswith increased brightness, intensity anddurability.Protective filmDesigned to protect the panel duringstorage, transit and installation,A-Lite has a quality “easy-peel”film for clean, easy removal, leaving noadhesive residue on the panel.

Multipanel UK is certainly an organisation which we are proud to be associated with, they operate at a high level and constantly produce quality products. The fact they’re based here in the UK, not too far from us which is another huge bonus – especially with a volume of short turn-around project we are exposed to!...

David Bowen, The Bigger Printing Co.
Alupanel Aluminium Composite Panel

Full Details

Alupanel A-Lite is our new digital panel which has the same excellent specification as the whole Alupanel® range.

Made using the highest grade materials, A-Lite offers superb rigidity and impact resistance together with a smooth, flat surface. The superior Polyethylene core, specially developed paint system and unique easy-peel protective film combine with a 0.18mm alloy skin to provide a panel of outstanding quality.

Available in matte/matte or gloss/matte, both sides of the panel have a finish that has been developed specifically for digital and screen printing. This helps display colors with increased brightness and intensity with the added benefit of greater durability. The high quality film provides excellent protection and is designed to remove smoothly and easily, leaving no residue on the panel.

NOW AVAILABLE WITH OUR NEW FIRE RESISTANT CORE, PERFECT FOR SIGNAGE IN AREAS WHERE ENHANCED FIRE CLASSIFICATION IS REQUIRED.

>> VIDEO - PRINTING ON A-LITE


For further information, you can access the product brochures and technical documents below.

VIEW BROCHURES
Alupanel A Lite CMYUK

Applications

Alupanel A-Lite is suitable for a variety of flat applications particularly those where high quality, vibrant printing is required.

  • Sign Making
  • Wayfinding
  • Standoff Lettering
  • Lightweight Hanging Signs
  • POS Displays
  • Vinyl Application
  • Modular Sign Systems
  • Hoarding Panels
  • Corporate ID
  • Exhibition Design
  • Outdoor Advertising
  • Interior Panels & Decoration
  • Direct UV & Screen Printing
04 News Print Week Hoarding 1Bd784A51D 1000X1000
Tumi Store Beverly Centre Usa 2 1000X1000

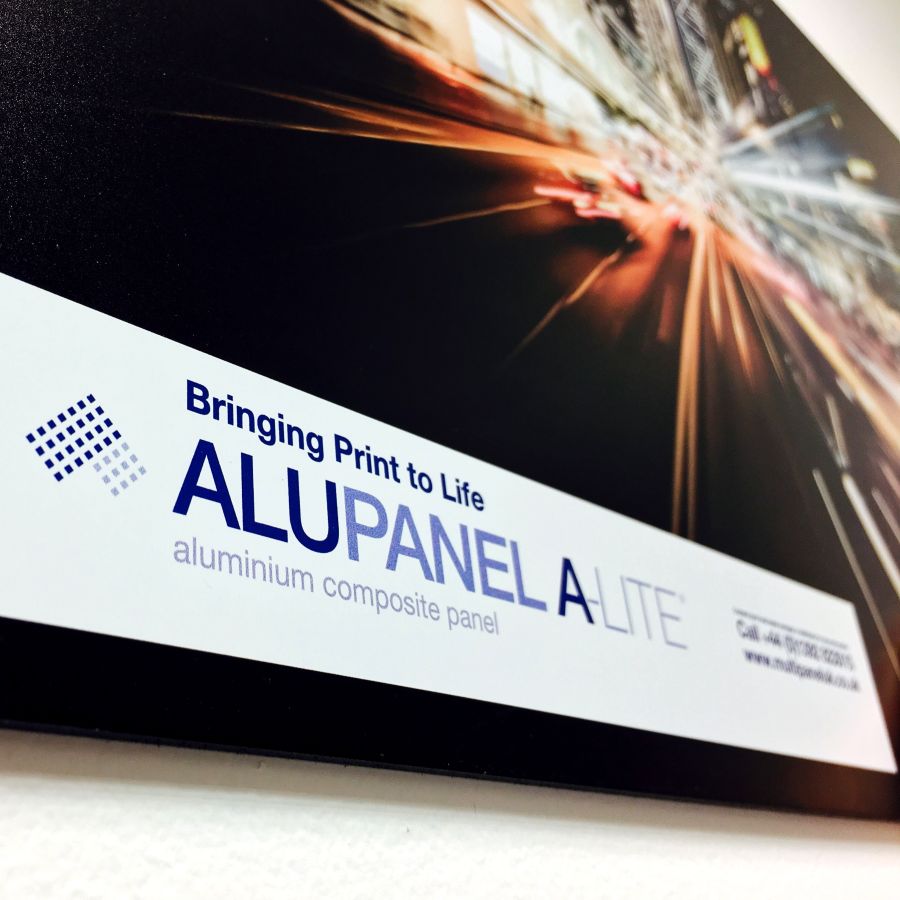

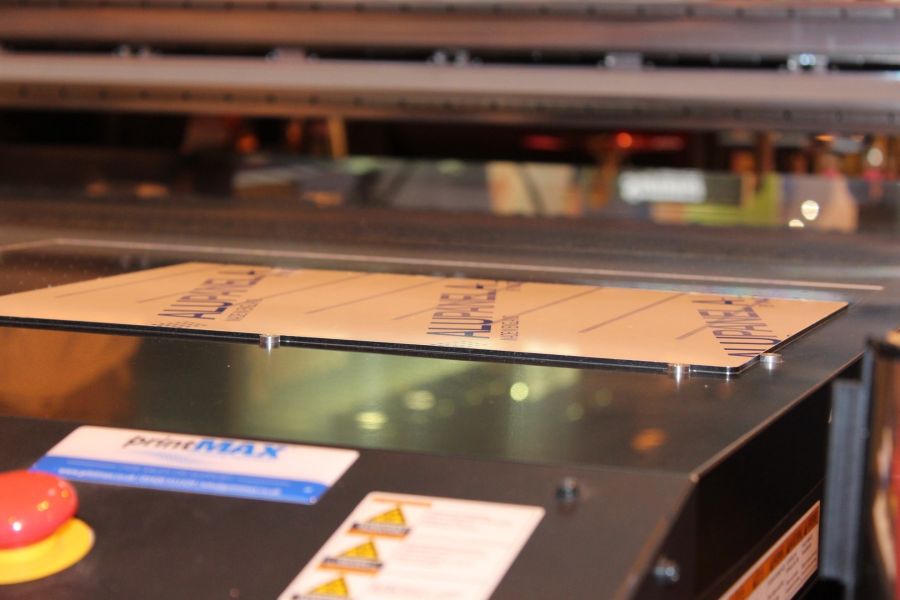

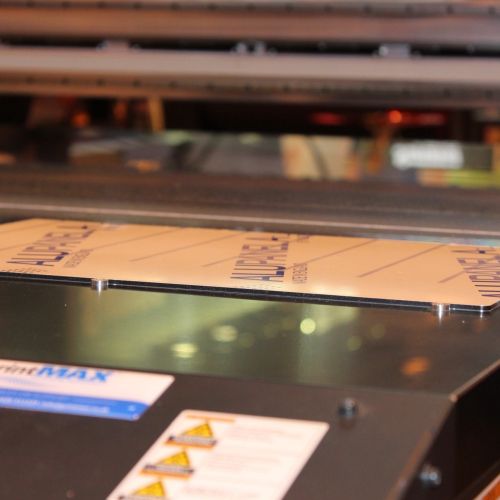

Alupanel A Lite Print Max

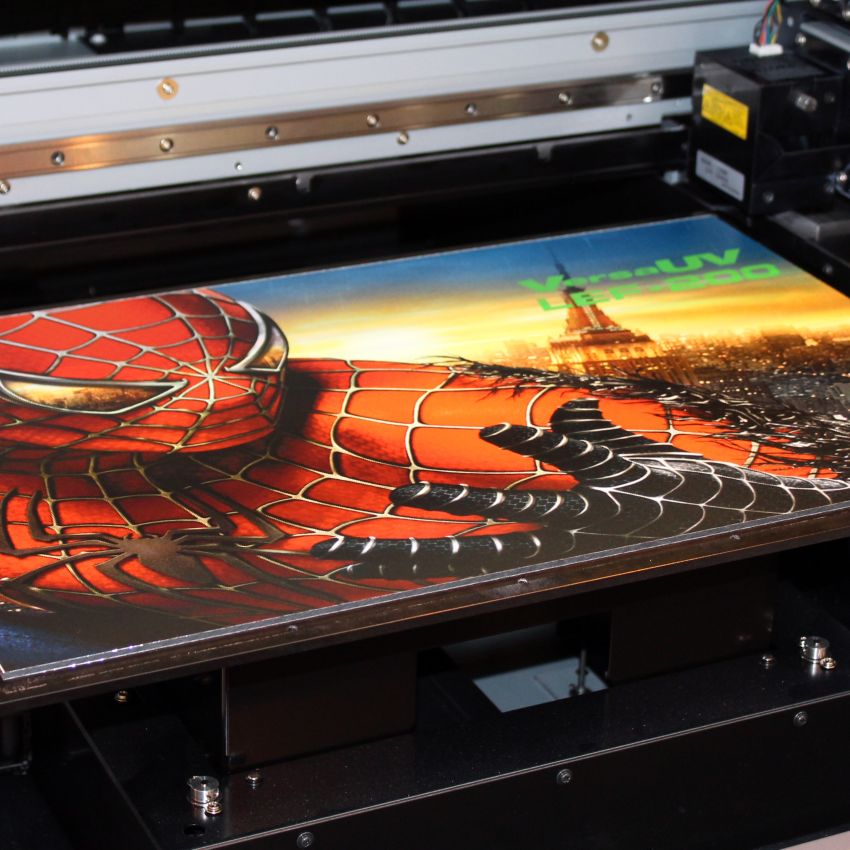

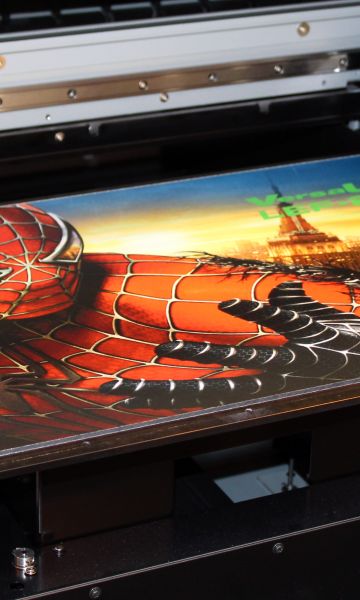

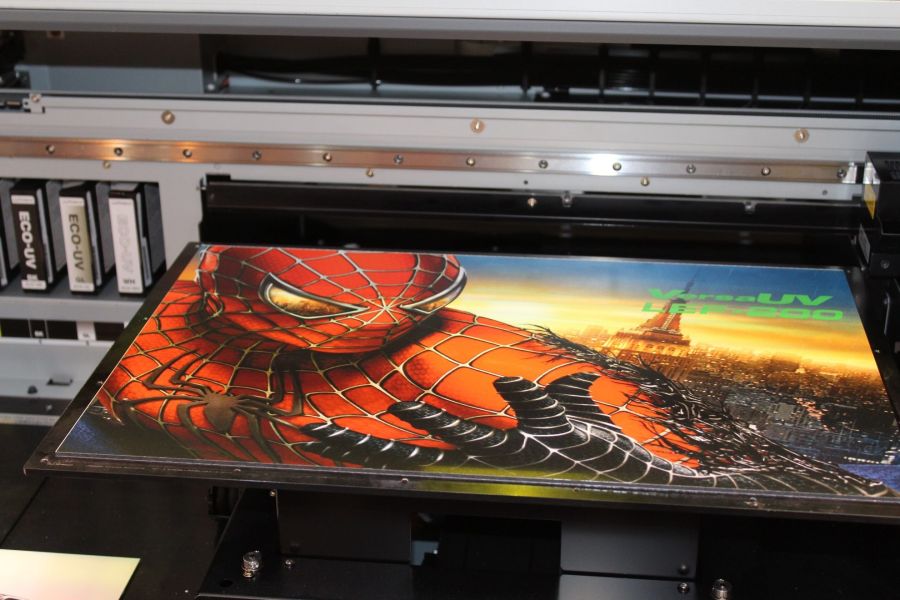

Alupanel Spiderman Roland LEF 200
Sign Display Best Buy Gaming

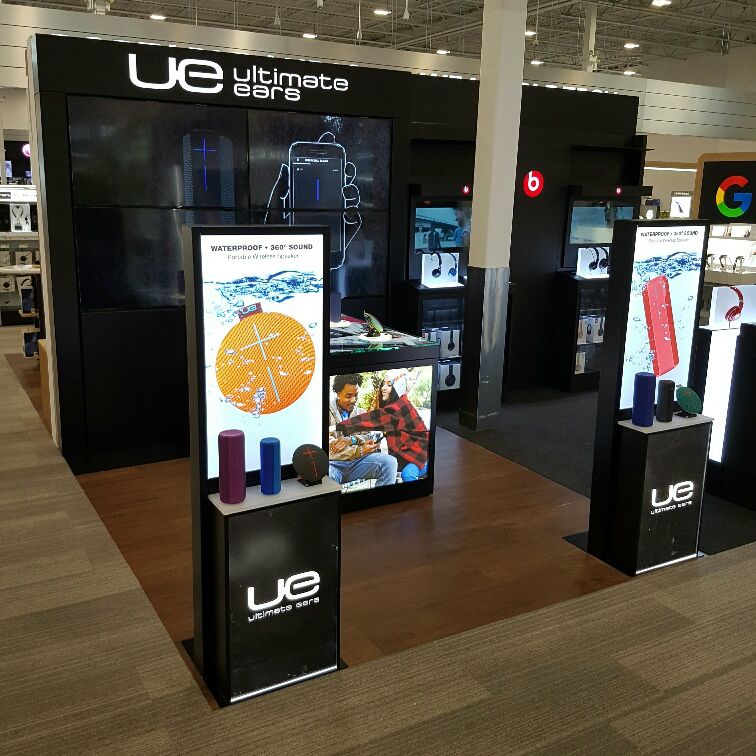

Sign Display Best Buy Ue

Technical

Here are the sheets sizes and thicknesses available as standard, along with the technical specification of Alupanel A-Lite.

Panel Thickness (mm)2346
Skin Thickness (mm)0.20.20.20.2
Weight (KG/m2)2.63.54.56.3
1000mmx2015mm
1000mmx2440mm
1000mmx2050mm
1000mmx3050mm
1220mmx2440mm
1220mmx3050mm
1250mmx2550mm
1250mmx3050mm
1500mmx3050mm
1500mmx4050mm
1525mmx3050mm
1560mmx3050mm
2000mmx3050mm
2000mmx4050mm
2050mmx3050mm
2050mmx4050mm
Panel Thickness (mm)3
Sound Absorption
Sound Attenuation
Water Absorption % by Volume
Thermal Performance R Values
Core CompositionLDPE
Fire PerformanceEN13501-1:2007 class D-s2-d0
Tensile Strength of Aluminium Layers
Panel Thickness (mm)+/- 0.2
Width (mm)-0 +2
Length (mm)-0 +3
Diagonal-0 +5
Thermal Expansion2.4mm/m @100ºC Temp Difference
Aluminium ThicknessAs specified in EN485-4
Paint Thickness (microns)20
Pencil Hardness2H
Toughness of Coating3T
Temperature Resistance-50ºC to +80ºC
Impact Strength (kg/CM2)
Boiling Water ResistanceBoiling for 2hrs without change
Acid ResistanceSurface immersed in 2% HC1 for 24hrs without change
Alkali ResistanceSurface immersed in NaHO engine oil for 24hrs without change
Oil ResistanceSurface immersed in 20# engine oil for 24hrs without change
Solvent ResistanceCleaned 100 times with Dimethylbenzene without change
Cleaning Resistance>1000 times without change
Peel Strength>5 Newton/mm
Tech

Colours

The colour point for A-Lite's superb digital finish is Signal White, RAL 9003
